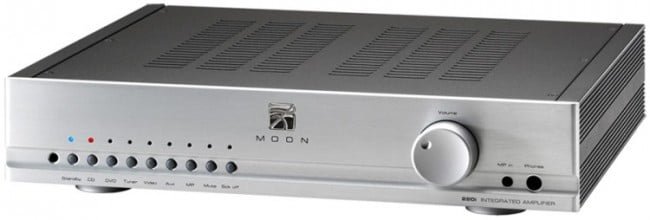

Amplificatore Integrato MOON 220i
€1.700,00
IVA 22% INCLUSA - MIGLIOR PREZZO GARANTITO!
CONSEGNA GARANTITA
CONSEGNA AL PIANO O FERMO DEPOSITO
Amplificatore Integrato MOON 220i
Hai dubbi o vuoi effettuare un ordine telefonico?
Condividi questo prodotto con i tuoi amici:
|
The MOON 220i Integrated Amplifier offers immense value, delivering unrivaled performance in a distinctive package. Designed with numerous convenient features such as a front-mounted mini-jack for personal media players, the 220i produces music like no other integrated amplifier in its class.
Sophisticated … Musical …
Incorporating technologies found in our highly acclaimed MOON Amplifiers and Preamplifiers, the220i Integrated Amplifier is the perfect companion for the 230D Disc Player, providing for many years of listening pleasure and hassle-free use. Thirty years of experience in the design and manufacturing of award wininng high-performance components has paved the way for the MOON 220i. The MOON 220i was previously available as the MOON i.5
|
| Significant Design Features: · An oversized power supply using a custom toroidal transformer design
· Rated output of 40 watts/channel into 8 Ω and 80 watts/channel into 4 Ω · 6 line-level inputs including a front-mounted 1/8” mini-jack for personal media players · Headphone output on ¼” TRS jack located on the front panel · Remote control operation · Class A output to 5 watts for greater efficiency · PCB w/ pure copper tracings & gold plating that yields low impedance characteristics · Heat-sink free design incorporating an aluminum chassis for evenly distributed heat dissipation · Rigid chassis construction to minimize the effects of external vibrations · Optimized selection of very high quality electronic components · Top cover is mounted with countersunk screws · Designed to be powered up at all times for optimal performance · Low operating temperature to ensure a longer than normal life expectancy · Includes CRM-2 remote control. |
| Configuration | Single-ended / 2-channel |
| Class of operation – Amplifier | A/AB |
| Single Ended Inputs (RCA) | 5 pairs |
| Mini-jack Input (1/8") | 1 |
| Input Sensitivity | 370mV – 3.0V RMS |
| Input Impedance | 11,000 Ω |
| Preamplifier Output | 1 pair |
| Output Power @ 8 Ω | 40 Watts per channel |
| Output Power @ 4 Ω | 80 Watts per channel |
| Output Impedance | 0.04 Ω |
| Damping Factor | > 200 |
| Signal-to-noise Ratio | 101dB @ full power |
| Maximum Output Voltage | 20 Volts |
| Slew Rate | 20V/µs |
| Maximum Current | 14 amperes |
| Frequency Response | 10Hz – 100kHz (+0/-3dB) |
| Crosstalk @ 1kHz | -78dB |
| IMD | < 0.07% |
| THD (20Hz – 20kHz @ 1 watt / @ 40 watts) | < 0.015% / < 0.03% |
| Available Faceplate Finishes | Black and Silver |
| Remote Control | CRM-2 Full Function |
| Power Consumption @ idle | 10 Watts |
| AC Power Requirements | 120V / 60Hz 240V / 50Hz |
| Fuse Replacement – 120V | 4A long fast blow |
| Fuse Replacement – 230V | 2A long fast blow |
| Shipping weight | 20 lbs / 8 kgs |
| Dimensions (W x H x D) | 16.9 x 3.5 x 14.5 in. (42.9 x 8.9 x 36.8 cm.) |
Features & specifications are subject to change without notice.
D.G.
| Peso | 9,0000 kg |
|---|
