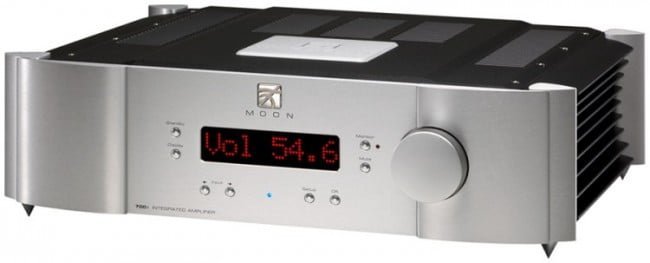

Amplificatore Integrato MOON 700i RS

Name: Amplificatore Integrato MOON 700i RS
Brand: Moon
SKU: 1693
Price: 13000 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

€13.000,00
IVA 22% INCLUSA

CONSEGNA GARANTITA

CONSEGNA AL PIANO O FERMO DEPOSITO

Amplificatore Integrato MOON 700i RS

Esaurito

Brand: Moon SKU: 1693

Hai dubbi o vuoi effettuare un ordine telefonico?

+39 377 979 3777

Condividi questo prodotto con i tuoi amici:

Descrizione
Informazioni aggiuntive

Descrizione

The MOON 700i is the ultimate Integrated Amplifier. Intended to meet the needs of the most demanding music connoisseurs, it is fully differential dual-mono design, rated at 175 watts/channel into 8Ω, offering authority, finesse and superb control. Using a variety of new technologies developed since the introduction of the Evolution Series, the 700i provides more sonic transparency and accuracy than previously thought possible. In addition, this integrated it is extremely flexible and exemplifies a luxurious lifestyle.

New technologies include (i) the M-eVOL2 volume control, with a phenomenal 530 steps, allowing for an extremely precise level adjustment just like the MOON 850P Preamplifier; (ii) New MOON output transistors, specifically designed for use in our amplifiers, provide tighter and more visceral bass performance, as well as unprecedented linearity thoughout the entire frequency spectrum; (iii) An input stage circuit which reduces noise, preserving image focus and integrity like never before.

There is a warmth and naturalness to the soundstage
that must be heard to be believed.

Of course, key features you’d expect in a MOON Evolution Series products are present such as our revolutionary Lynx amplification circuitry, SimLink and M-Lock, just to name a few, as well as both RS-232 and IR ports for custom-install environments. Finally, a plethora of user selectable cosmetic options are available at the time of purchase.

Significant Design Features:

· RS-232 port for (i) full unsolicited bidirectional feedback and (ii) firmware updates
· IR input for external control
· Lynx circuitry which is a "no overall feedback" design resulting in genuine real-time amplification,
a more accurate musical reproduction with respect to tonality, virtually non-existent IMD and the
elimination of common phase errors resulting from feedback
· Custom proprietary toroidal transformer design with lower magnetic, electrical and thermal
loss, yielding an improved power transfer and lower regulation factor. The result is increased
current speed and better dynamics
· A dual-mono oversized power supply
· The preamplifier section is mounted on its own dedicated circuit board resulting in lower crosstalk
· SimLink controller port for 2-way communications with other compatible MOON components
· M-eVOL2 volume control circuit using MDAC’s (operating in a current steering R-2R configuration)
which alter the audiio signal’s amplitude yielding no sonic degradation of the signal, regardless
of the selected volume setting
· Proprietary MOON Bipolar output transistors with unprecedented gain linearity resulting in
improved bass response and even more accurate sonic reproduction
· M-Lock for “user selectable” maximum volume setting lock-out for each line input
· “Gain offset” for each individual line input with a ±10dB range
· Each line input is fully configurable to be “home-theater ready”, where the gain section of the
700i is bypassed
· 530 individual volume steps in 1dB and 0.1dB increments
· An exceptionally short signal path , yielding a much faster transient response
· 12 Volt trigger output for remote operation
· "Class A" output to 5 watts for greater efficiency
· 4-Layer PCB’s with pure copper tracings for a much shorter signal path; This results in
greater sonic accuracy and a dramatically improved signal-to-noise ratio
· Ultra rigid chassis construction to minimize the effects of external vibrations
· Accurate matching of the very finest quality electronic components in a symmetrical circuit design
· Improved reliabilty through the elimination of moving parts
· Low operating temperature for a longer than normal life expectancy
· Includes FRM-3 remote control.

Type	Solid State
Configuration	Dual-Mono / Balanced
Class of operation – Amplifier	A/AB
Single Ended Inputs (RCA)	5 pairs
Balanced Inputs (XLR)	1 pair
Input Sensitivity	490mV – 6.0V RMS
Input Impedance	23,700 Ω
Monitor Loop	1
Preamplifier Output	1 pair @ 50 Ω (RCA)
Output Device Types – Amplifier	Proprietary MOON BiPolars – 6 per channel
Output Binding Posts	Gold-plated WBT
Output Power @ 8 Ω	175 Watts per channel
Output Power @ 4 Ω	350 Watts per channel
Output Impedance	0.02 Ω
Damping Factor	> 400
Volume Steps	0.5 dB from 0-30 and 0.1dB from 30-80
Gain Control	M-eVOL2
Gain	37dB
Signal-to-noise Ratio – Preamplifier	120dB (20Hz-20kHz)
Signal-to-noise Ratio – Amplifier	105dB @ full power
Maximum Output Voltage	45 Volts
Slew Rate	35V/µs
Maximum Current – Peak	42 amperes
Maximum Current – Continuous	22 amperes
Frequency Response	10Hz – 100kHz (+0/-3dB)
Crosstalk @ 1kHz	-102dB
IMD	unmeasurable
THD (20Hz – 20kHz @ 1 watt)	< 0.015%
THD (20Hz – 20kHz @ 175 watts)	< 0.04%

12 Volt Trigger Output Operation	Direct Logic (0V = off, 12V=on) using a 3.5mm mono microphone jack with an output impedance of 1000 Ω and current requirement of 12mA
SimLink Port	1 input + 1 output each on 1/8" mini-jack
RS-232 Port	9-pin female DB connector
IR input	1/8" mini-jack

Remote Control	FRM-2 All-Aluminum Full Function
Display Type	8 character dot matrix LED
Power Consumption @ idle	50 Watts
AC Power Requirements	120V / 60Hz 240V / 50Hz
Fuse Replacement – 120V	6.0A long fast blow
Fuse Replacement – 230V	3.0 long fast blow
Shipping weight	60 lbs / 27 kgs
Dimensions (w x h x d)	18.8 x 5.4 x 18.1 in.
