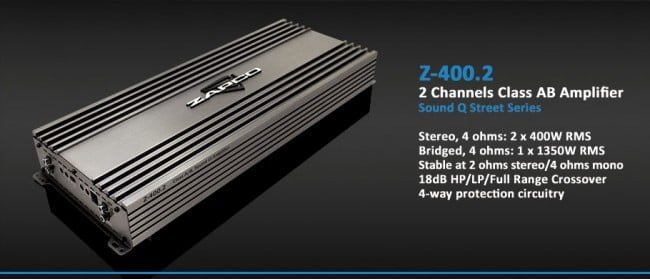

AMPLIFICATORE SERIE Z400.2 ZAPCO

zapco power specifications typical application
2 Channel H-E SQ Full range class A/B
Power @ 2Ω: 2 x 670 watts
Power @ 4Ω: 1 x 1340 watts
RMS Rated Power @ < 0.05%THD Power @ 2Ω: 2 x 670 watts Power @ 4Ω: 2 x 400 watts Bridged @ 4Ω: 1 x 1340 watts More about Zapco Power Class-AB bridgeable 12V amplifier 2/1 channel bridgeable 12V amplifier Stable into 4 ohms bridged or 2 ohms stereo load PWM MOSFET power supply Variable input sensitivity 18dB octave crossover slope Variable FULL / LP / HP Electronic Crossover Variable bass boost RCA Signal input and output connectors 4-way protection circuitry Thermal / over current / speaker short / DC Tested voltage & THD: 14.4V & less than 0.05% at rated power Operating voltage : DC10V~15.5V power input Wired remote control (optional) Dimensions in Inches : 7.5(W) x 3(H) x 20.25(L) The Z-400.2 gives you 400 Watts of true Zapco power into two channels with the fidelity you need in the SQ class amplifiers. MS
