CONVERTITORE D/A ESOTERIC D-07X

Name: CONVERTITORE D/A ESOTERIC D-07X
Brand: Esoteric
SKU: 3656
Price: 5500 EUR
Availability: InStock
Rating: 5 (1 reviews)

€5.500,00
IVA 22% INCLUSA

CONSEGNA GARANTITA

CONSEGNA AL PIANO O FERMO DEPOSITO

CONVERTITORE D/A ESOTERIC D-07X

Brand:

SKU: 3656

Hai dubbi o vuoi effettuare un ordine telefonico?

+39 377 979 3777

Condividi questo prodotto con i tuoi amici:

Descrizione
Informazioni aggiuntive

Descrizione

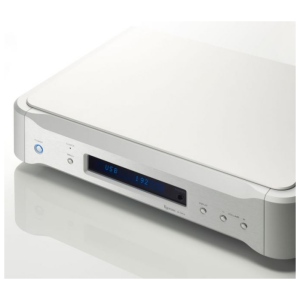

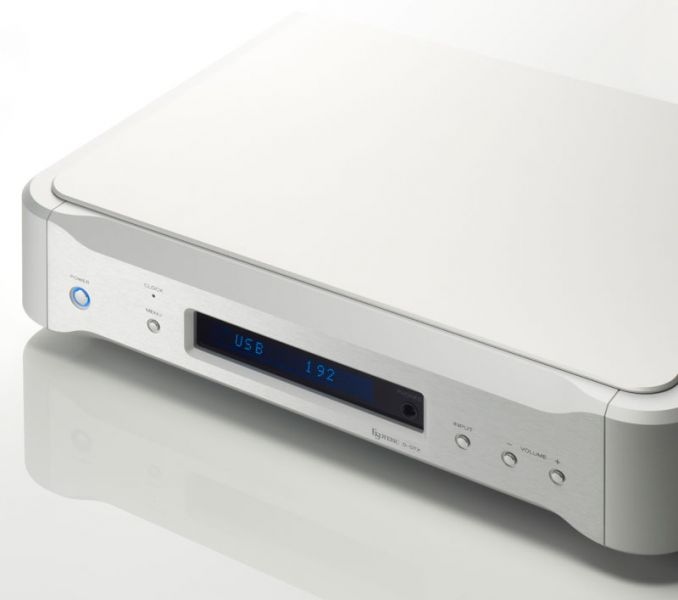

CONVERTITORE D/A ESOTERIC D-07X

Convertitore D/A stereo. Scheda di conversione D/A 32bit dual mono AK4392. Ingresso SACD su AES/EBU, Ingressi XLR, USB, ottico e coassiale. Ingresso e uscita BNC per clock esterno. Uscite bilanciate e sbilanciate. 2 Circuiti PLL per la riduzione del jitter. Up conversion del segnale PCM a 2x e 4x. Cabinet in estruso di alluminio satinato antivibrazione.

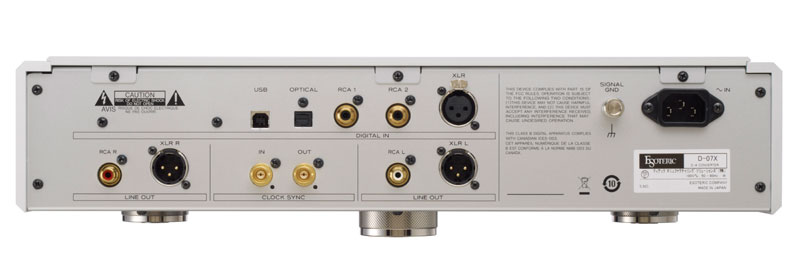

Analog output

Jacks

XLR (2ch) ×1
RCA (2ch) ×1
Headphones ×1

Output impedance

XLR: 100Ω
RCA: 25Ω

Maximum output level
(1 kHz, with full-scale input)

XLR: 2 .45 Vrms (when set to 0 dB with 10 kΩ load)
RCA: 2 .45 Vrms (with 10 kΩ load)
PHONES: 20 mW + 20 mW (with 32 Ω load)

Frequency response

5 Hz to 55 kHz

Signal-to-Noise Ratio (S/N)

115dB

Total harmonic distortion

0 .0015% (JEITA)

Digital input

Balanced digital input

XLR (5 .0 Vp-p/110 Ω) ×1

Coaxial connector

RCA (0 .5 Vp-p/75 Ω)×2

Optical digital connector

OPTICAL (–24 .0 to –14 .5 dBm peak) ×1

USB port

B connector ×1

Input sampling frequencies

32, 44 .1, 48, 88 .2, 96, 176 .4, 192 (kHz)
Note: The XLR input (only) supports DSD input in ES-LINK (single) format

Clock sync output

Jack

BNC×1

Output frequency

44 .1, 48, 88 .2, 96, 100, 176 .4, 192 (kHz/rectangular wave)
22 .5792, 24 .576 (MHz)
Same frequency as input (when set to THRU)

Output level

Equivalent to TTL levels (with 75 Ω load)

Clock sync input

Jack

BNC×1

Input frequency

44.1, 48, 88.2, 96, 100, 176.4, 192 (kHz)
10, 22.5792, 24.576 (MHz)

Input impedance

75Ω

Input level

Square wave: equivalent to TTL level
Sine wave: 0 .5–1 .0 Vrms (with 75 Ω load)

General

Power supply

AC 230V, 50Hz
AC 120V, 60Hz
AC 220V, 60Hz

Power consumption

External dimensions
(W×H×D, including protrusions)

445 x 106 .5 x 356 mm
(17 1/2″ x4 2/8″ x 14 1/8″)

Weight

10 .4 kg (22 .93 lb)

–	This product is available in three different power supply variations shown in the specification section above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
–	The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
