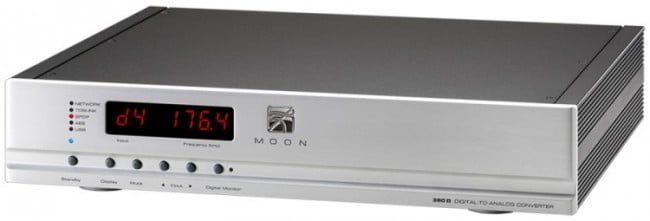

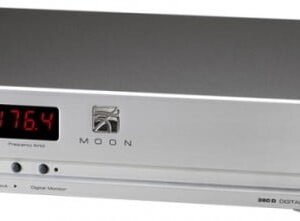

Simaudio Ltd. proudly introduces the MOON 380D Digital-to-Analog Converter, our latest addition to the MOON Series of audio components. Designed around our M-AJiC32 circuitry (an asynchronous jitter elimination system) performing in true 32-bit fully asynchronous mode, the MOON 380D features the ESS SABREP32 Ultra DAC operating in 32-bit Hyperstream™ where the conversion process uses an astonishing 8 DAC’s per channel. Raising the bar further, there are eight (8) digital inputs covering the full gamut of connections – AES/EBU, S/PDIF, Optical and USB. All of these inputs accept a signal up to 24-bit/192kHz resolution. Finally, we’ve included both a full digital monitor loop (S/PDIF) to accommodate external devices such as a room correction component and one S/PDIF digital output.


An ultra-high performance DAC with versatile functionality


Enhancing this Digital-to-Analog Converter are two (2) separate options; (i) The MOON MiND music streamer module which is actually a digital 9th input via WiFi or Ethernet connection, and (ii) a high quality remote-controlled volume circuit feeding both balanced (XLR) and single-ended (RCA) analog outputs. The MOON 380Dis targeted at individuals with computer-based audio setups, large digital music collections or multiple digital sources.





Configuration Balanced differential
Front Panel Controls Standby   /   Display   /   Mute   /   Input Selector   /   Digital Monitor
LED Indicators Input Type
DAC / Digital Filter ESS ES9016 Sabre32 32-bit Hyperstream™
Bit-depth range / Sampling Frequency range – ALL INPUTS 16 – 24 bits   /   44.1 – 192kHz
Frequency Response   (full range) 2Hz – 100kHz   +0/-3dB
THD @ 1kHz, 0dBFS   (A-weighted) < 0.001 %
IMD < 0.001 %
Dynamic Range > 120dB
Signal-to-noise ratio > 120dB @ full output
Slew Rate 50V/µs
Channel Separation > 116dB
Low Level Linearity ±0.25dB @ -90dBFS
Intrinsic Jitter < 1 picosecond RMS
Fixed Analog Outputs – Balanced   (XLR) 1 pair
Variable Analog Outputs – Balanced   (XLR) 1 pair   –  OPTIONAL
Fixed Analog Outputs – Single-Ended   (RCA) 1 pair
Variable Analog Outputs – Single-Ended   (RCA) 1 pair   –  OPTIONAL
Analog Output Impedance – Single-Ended 100 Ω
Analog Output Impedance – Balanced 100 Ω
Max. Analog Output @ 0dBFS – Fixed Level – XLR / RCA 2.0 Volts
Max. Analog Output @ 0dBFS – Variable Level – XLR / RCA 4.0 Volts   –  OPTIONAL
Digital Inputs (8) AES/EBU x 2     S/PDIF (RCA) x 2     S/PDIF (BNC) x 1
USB x 1     TosLink x 2
Digital Outputs (1) S/PDIF (RCA)
Digital Monitor Loop S/PDIF (RCA) – input x 1 / output x 1



Available Faceplate Finishes Black and Silver
Remote Control CRM-2 Full Function
Power Consumption @ idle 10 Watts
AC Power Requirements 120V / 60Hz     240V / 50Hz
Fuse Replacement – 120V 0.2A short slow blow
Fuse Replacement – 230V 0.1A short slow blow
Warranty   (USA & Canada) 10 yrs
Shipping weight 16 lbs / 7.5 Kgs
Dimensions   (W x H x D) 16.9 x 3.4 x 13.1 in.   (42.9 x 8.6 x 33.3 cm.)

    Features & specifications are subject to change without notice
