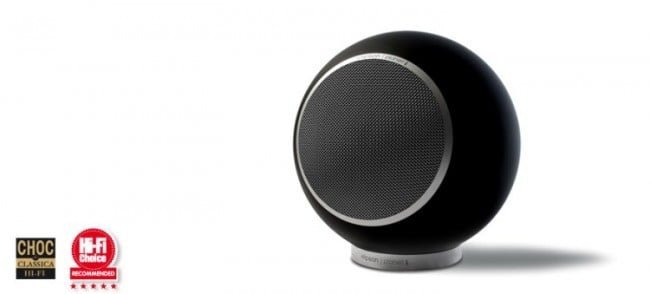

DIFFUSORE ACUSTICO ELIPSON PLANET L BLACK

Design

PLANET L – MATTE BLACK



PLANET L – PIANO LACQUER WHITE



PLANET L – LACQUERED RED



PLANET L – LACQUERED BLACK



Features

• SYSTEM: 2 ways
• FREQUENCY RANGE (+/- 3DB): 48 – 20000 Hz
• IMPEDANCE: 6 Ω
• SENSITIVITY: 90 dB
• MAX MUSIC POWER: 60 Watts
• RECOMMENDED AMPLIFIER: 30-80 Watts
• TERMINAL TYPE: Single wiring
• TERMINAL FINISH: Silver plated
• INTERNAL WIRING: 99,99% OFC
• ENCLOSURE: Bass Reflex
•  Magnetic shield

Dimensions

• WITH GRILL AND TERMINAL (W X H X D):
  11.4 x 11.4 x 11.4" / 290 x 290 x 290 mm

Crossovers:

• CROSSOVER #1
  Frequency: 3800
  Slope: 12-18

Drivers:

• MEDIUM
  Brand: Elipson
  Diameter: 6.50
  Cone: paper
  Magnet: ferrite
• TWEETER
  Brand: Elipson
  Diameter: 1.00
  Cone: soft
  Magnet: neodynium

Warranty

• 2 years

Unit packaging

• Manual and support ring included
• QUANTITY/BOX: 1
• DIMENSIONS (W X H X D):
  15.9 x 16.7 x 16.9" / 405 x 423 x 428 mm
• GROSS WEIGHT: 18.7 lbs / 8.5 kg
• NET WEIGHT: 15.4 lbs / 7 kg
•
