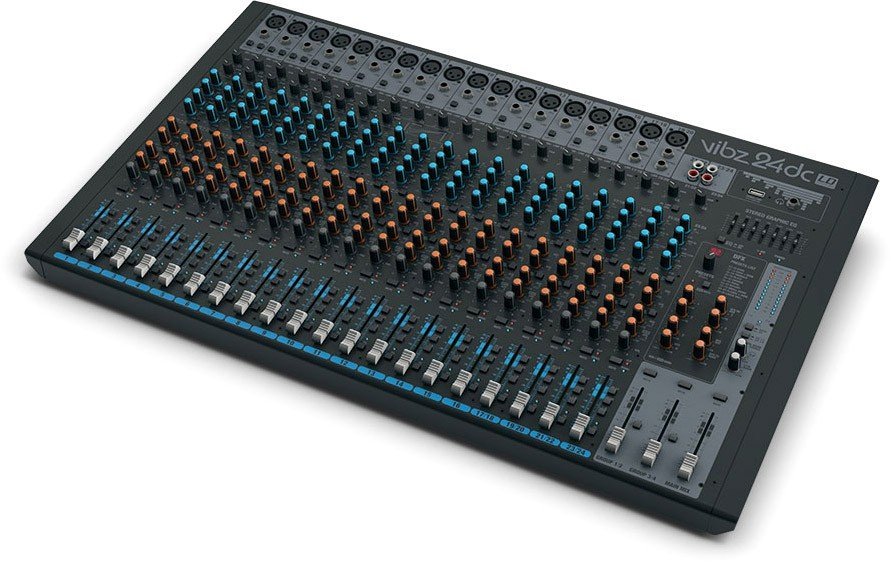

LD Systems VIBZ 24 DC | Mixer Live 24 Canali con DFX e Compressore

Name: LD Systems VIBZ 24 DC | Mixer Live 24 Canali con DFX e Compressore
Brand: LD Systems
SKU: 30933
Price: 659 EUR
Availability: InStock
Rating: 5 (1 reviews)

€659,00
IVA 22% INCLUSA

CONSEGNA GARANTITA

CONSEGNA AL PIANO O FERMO DEPOSITO

24-channel mixer with 16 mono and 4 stereo channels
Balanced mic and line inputs
3-band EQ with semi-parametric mids
4 aux sends, 2 pre or post fader switchable
8 mono channels with inserts and compressor
Channel routing, mute and PFL switches
48V phantom power
4 subgroups with individual outputs
24-bit digital effects and global 7-band graphic EQ
Balanced and unbalanced main outputs
Control room and headphone outputs
10 Hz – 45 kHz frequency response
integrates 16 bit/48 kHz USB audio interface
3-band EQ with semi-parametric midrange regulating on mono channels
4-band EQ on stereo channels

Brand: LD Systems

Hai dubbi o vuoi effettuare un ordine telefonico?

+39 377 979 3777

Condividi questo prodotto con i tuoi amici:

SCHEDA TECNICA
DOWNLOAD

SCHEDA TECNICA

Technical data:

Product type:	Mixers
Type:	Home-Recording
Type:	Live
Channels:	24

microphone

Mono Mic and Line Input Channels:	16
Mono Mic input connectors:	6.3 mm TRS
Mono Mic input connectors:	XLR
Mono Mic Input Type:	Electronically balanced
Mono Mic Input Frequency Range:	10 – 45000 Hz
Amplification Range mono Mic Input:	0 – 50 dB
Mono Mic Input Input THD-N:	0.0058%
Mono Mic Input Impedance:	4000 Ohm(s)
Mono Mic Input S/N Ratio:	113 dB
Mono Line Input Type:	Electronically balanced
Mono Line Input Frequency Range:	10 – 45000 Hz
Amplification Range mono Line Input:	0 – 50 dB
Mono Line Input Input THD-N:	0.0045 %
Mono Line Input Impedance:	21000 Ohm(s)
Mono Line Input S/N Ratio:	116 dB
Mono Channel Equalizer High:	+/-15 dB @ 12.000 Hz
Mono Channel Equalizer Mid:	200 – 8000
Mono Channel Equalizer Low:	+/-15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels:	3-band EQ (High, Mid, Low)
Controls Mono Mic and Line Input Channels:	AUX Send 1-2 pre (AUX2 pre/post switchable)
Controls Mono Mic and Line Input Channels:	AUX Send 3-4 (post)
Controls Mono Mic and Line Input Channels:	Bal
Controls Mono Mic and Line Input Channels:	Channel Fader
Controls Mono Mic and Line Input Channels:	Fader Routing switch (Group 1/2, Group 3/4, Main L+R)
Controls Mono Mic and Line Input Channels:	Gain
Controls Mono Mic and Line Input Channels:	LINE/USB -switch (Channel 21 – 24)
Controls Mono Mic and Line Input Channels:	PFL / Solo Switch
Phantom power:	48 V DC switchable
Mono Inserts:	8
Mono Inserts Connectors:	6.3mm jack

Stereo Channels:

Stereo Line Input Channels:	4
Stereo Line Input Connectors:	6.3 mm TRS
Stereo Line Input Type:	Electronically balanced
Stereo Line Input Type:	Unbalanced
Stereo Line Input Frequency Range:	10 – 45000 Hz
Amplification Range stereo Line Input:	0 – 50 dB
Stereo Line Input Input THD-N:	0.0045 %
Stereo Line Input Impedance:	37000 Ohm(s)
Stereo Line Input S/N Ratio:	116 dB
Stereo channel equalizer treble:	+/-15 dB @ 12.000 Hz
Stereo channel equalizer hi-mids:	+/-15 dB @ 2.500 Hz
Stereo channel equalizer low-mids:	+/-15 dB @ 2.500 Hz
Stereo channel equalizer bass:	+/-15 dB @ 80 Hz
Controls Stereo Line Input Channels:	4-band EQ (High, High-Mid, Low-Mid, Low)
Controls Stereo Line Input Channels:	AUX 1 – 2 switchable Pre/Post
Controls Stereo Line Input Channels:	AUX/DFX Send 1 – 4
Controls Stereo Line Input Channels:	Balance
Controls Stereo Line Input Channels:	Channel Volume
Controls Stereo Line Input Channels:	EQ on/off
Controls Stereo Line Input Channels:	Gain
Controls Stereo Line Input Channels:	GROUP to Main -switch
Controls Stereo Line Input Channels:	LINE/USB -switch

Main Section:

AUX / Effects Send Channels:	4
AUX / Effects Send Connectors:	6.3 mm TS
Stereo AUX Return Channels:	1
Group Out:	4
Group Out Connectors:	4 x 6,3mm TRS
Balanced Stereo Main Out:	1
Balanced Stereo Main Out Connectors:	XLR
Unbalanced stereo Main Outputs:	1
Unbalanced stereo Main Output Connections:	2 x 6.3 mm TS
Main-Insert Inputs:	1
Main-Insert Input Ports:	2 x 6.3 mm TRS asymmetrically
DFX Out Outputs:	1
DFX Out Output Ports:	6.3 mm TRS
USB In/Out In-/Outputs:	1
USB In/Out Ports:	USB-B
Max. Unbalanced Stereo Main Out Level:	22 dBu
Stereo Control Room Out:	1
Stereo Control Room Out Connectors:	2x 6.3 mm TRS
Headphones ouput:	1
Headphones outputs:	6.3 mm TRS
Digital Effects Processor:	Yes
Number of Presets:	100
DMX output:	1
Footswitch Connector DFX Mute:	6.3 mm TS
Main section controls:	7-band graphic EQ
Main section controls:	AUX/DFX Send 1 – 4
Main section controls:	DFX Mute
Main section controls:	DFX Presets
Main section controls:	DFX to Aux
Main section controls:	DFX to Main
Main section controls:	EQ on/off
Main section controls:	GROUP to Main -switch
Main section controls:	Main Mix Fader
Main section controls:	mains switch
Main section controls:	Phantom Power
Main section controls:	Phones/CTRL Fader
Main section controls:	TK In To Main/To CTRL
Indicators:	DFX Peak
Indicators:	DFX to Main
Indicators:	PFL indicator
Indicators:	Phantom Power
Indicators:	Power
Indicators:	Signal
Operating voltage:	100 V AC – 240 V AC, 50 – 60 Hz
Width:	712 mm
Height:	80 mm
Depth:	425 mm
Weight:	9,442 kg
