LUXMAN L-505uXII – Amplificatore integrato stereo Hi-End 100W x 2 – 8 ohm,

Name: LUXMAN L-505uXII - Amplificatore integrato stereo Hi-End 100W x 2 - 8 ohm,
Brand: Luxman
SKU: 15886
Price: 3990 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

Il prezzo originale era: €5.390,00.Il prezzo attuale è: €3.990,00.
IVA 22% INCLUSA

CONSEGNA GARANTITA

CONSEGNA AL PIANO O FERMO DEPOSITO

Esaurito

Brand:

Hai dubbi o vuoi effettuare un ordine telefonico?

+39 377 979 3777

Condividi questo prodotto con i tuoi amici:

Descrizione

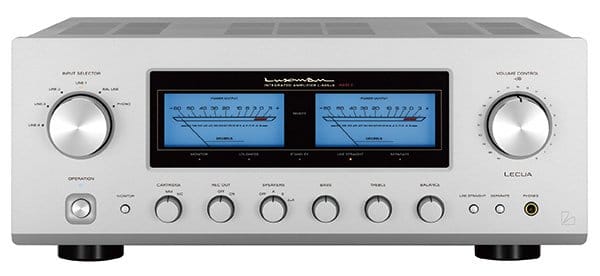

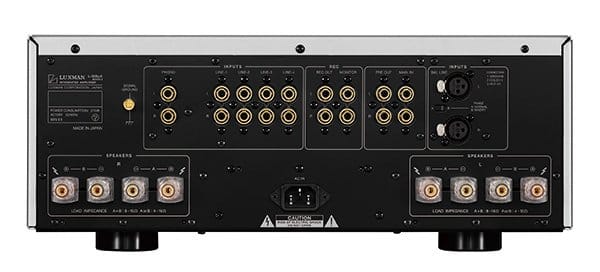

Amplificatore integrato stereo Hi-End, potenza 100W x 2 su 8 ohm, circuitazione ODNF 4.0, controllo volume LECUA, 4 ingressi RCA
1 ingresso bilanciato XLR, 1 ingresso phono MM / MC, ingresso main in,
uscita pre out, rapporto S/R > 104dB, risposta in frequenza 20Hz-100kHz (+0, -3.0dB), dimensioni (WxHxD) 440×178 x454mm, Peso 22,5 kg. Finitura Silver

SCHEDA TECNICA

Spec

Rated output	100W + 100W (8Ω), 150W + 150W (4Ω)
Input sensitivity/input impedance	PHONO (MM): 2.5mV/47kΩ PHONO (MC): 0.3mV/100Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/55kΩ MAIN-IN: 1V/47kΩ
Output voltage	REC OUT: 180mV, PRE-OUT: 1V
Frequency response	PHONO: 20Hz to 20kHz (within -3dB) LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion	0.009% or less (8Ω, 1kHz) 0.09% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A)	PHONO (MM): 91dB or more PHONO (MC): 75dB or more LINE: 104dB or more
Volume adjustment	LECUA
Amplification circuit	ODNF 4.0

Output configuration	Bipolar parallel push-pull
Damping factor	210
Max. amount of tone control	BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz
Power supply	230V~(50Hz) / 115V~(60Hz)
Power consumption	270W 85W (under no signal), 0.4W (at standby)
External dimensions	440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth
Net weight	22.5kg (main unit)

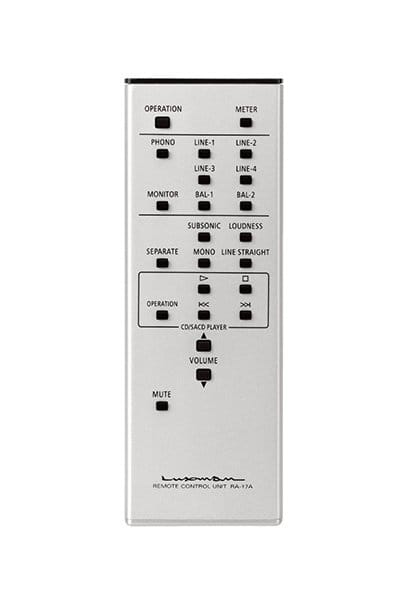

Accessories	Remote control (RA-17A) Power cable
Speaker terminal Supported Y-lug terminal dimension	Width of part a: 15mm or less Width of part b: 8mm or more * Connection may not be performed depending on the shape of the Y-lug terminal.
