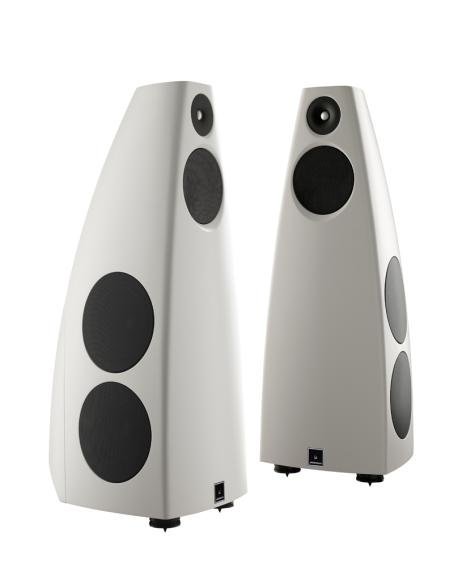

MERIDIAN DSP9 WHITE | Coppia Diffusori Attivi con DSP

SCHEDA TECNICA

Input Connectivity:

• 1 x Meridian SpeakerLink connector [RJ45]
• 1 x Coaxial digital audio [RCA phono] supporting up to 192kHz @ 24-bit
• 1 x Optical digital audio [Toslink] supporting up to 96kHz @ 24-bit
• 1 x USB digital audio [Type C] supporting up to 384kHz @ 24-bit
• Bluetooth via Meridian B-Link [supplied]
• 1 x Balanced analogue audio [XLR] on analogue input module
• 1 x Unbalanced analogue audio [RCA phono] on analogue input module

Output Connectivity:

• 1 x Meridian SpeakerLink connector (RJ45)

Control Options Without Analogue Input Module:

• Meridian comms via SpeakerLink
• Bluetooth via Meridian B-Link module [supplied] and the Meridian Control app
• Integrated IR receiver
• External IR receiver connection
• RS232 via SpeakerLink input
• USB via Maintenance connection

Control Options With Analogue Input Module:

• Automatic signal-sense detect. Switch on detect time less than three seconds; switch to standby timeout approximately 20 minutes
• Trigger input on analogue input module [3.5mm minijack]

Performance:

• Peak SPL: 119dB @ 1m for a single loudspeaker
• Frequency response in-room within 3dB: 20Hz – 40kHz

Tweeter Amplifier:

• Class AB, capable of greater than 150W into 4Ω, < 1% THD
• THD + noise @ 1kHz < 0.005%
• Bandwidth >100KHz

Mid-Range Amplifier:

• Class AB, capable of greater than 150W into 4Ω, < 1% THD
• THD + noise @ 1kHz < 0.005%
• Bandwidth >100KHz

Bass Amplifiers:

• Four bridged pairs of Class-D amplifiers – each pair capable of greater than 240W into 4Ω, < 1% THD
• THD + noise @ 1kHz < 0.008%

Speaker Drivers:

• Tweeter:
  • 25mm beryllium dome with silver voice-coil, steel custom waveguide
• Mid-Range Driver:
  • 1 x 160mm with non-conductive voice-coil former and anti-resonance clamp-ring mounting system
• Bass Drivers:
  • 4 x 200mm polypropylene long-throw [up to 24mm excursion] with anti-resonance clamp-ring mounting system

Front-Panel Indicator:

• Blue in Standby, White in use [can also be unlit in use]

Rear-Panel Controls:

• Power On/Off, channel selector switch, input sensitivity switch [on analogue input module]

Dimensions / Weight:

• Width: 392mm [15.43in] tapering to 158mm [6.2in]
• Depth: 511mm [20.1in] tapering to 187mm [7.4in]
• Height: 1101mm [43.5in]* (*With feet/spikes fitted)
• Weight: 68kg [149.9lbs]

Packed Dimensions / Weight:

• Width: 660mm [26.0in]
• Depth: 550mm [21.7in]
• Height: 1240mm [48.8in]* (*With feet/spikes fitted)
• Weight: 80kg [176.4lbs]
