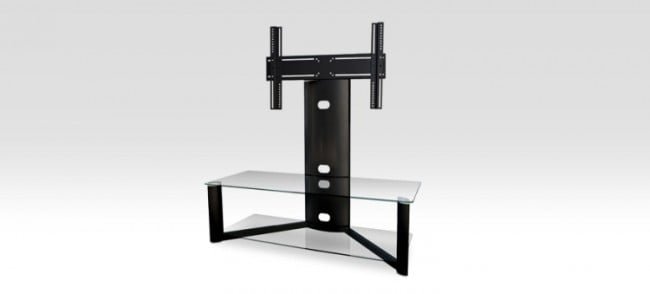

MOBILE PORTA TV NORSTONE MASK AV BLACK

DESIGN

Mask AV – powder coated black – clear



FEATURES

•  Cable management system

DIMENSIONS

• Overall dimensions (W x H x D):
  46.5 x 50.5 x 19.7" / 1180 x 1283 x 500 mm
• Height without column: 13.9" / 354 mm
• Shelf A (W x D):
  Min: 46.5 x 16.5" / 1180 x 420 mm
  Max: 46.5 x 18.1" / 1180 x 460 mm
  Thickness: 0.3" / 8 mm
  Maximum load: 88.2 lbs / 40 kg
• Shelf B (W x D):
  Min: 37.2 x 16.5" / 946 x 420 mm
  Max: 37.2 x 18.1" / 946 x 460 mm
  Thickness: 0.2" / 6 mm
  Maximum load: 88.2 lbs / 40 kg
• Height between shelves:
  11.7" / 296 mm

COLUMN

• Height without arms: 43.3" / 1100 mm
• Column width: 11.8" / 300 mm

TV MOUNT

• Screen from 32" to 50"
• Compatibility: 75, 100×75, 100, 200×100, 200, 300×200, 300, 400×200, 400×300, 400, 600×200, 600×300, 600×400
•
•  Rotating
• Rotation: +/- 25 °
• Horizontal holes distance min: 2.2" / 57 mm
• Horizontal holes distance max: 31.2" / 793 mm
• Vertical holes distance min: 3" / 75 mm
• Vertical holes distance max: 18.9" / 480 mm
• Maximum load: 154.3 lbs / 70 kg

WARRANTY

• 2 years

UNIT PACKAGING

• Delivered disassembled with screws kit, mounting instructions and tools.
• Quantity/box: 1
• Dimensions (W x H x D):
  49.6 x 8.1 x 21.3" / 1260 x 205 x 540 mm
• Gross weight: 89.9 lbs / 40.8 kg
• Net weight: 77.8 lbs / 35.3 kg
