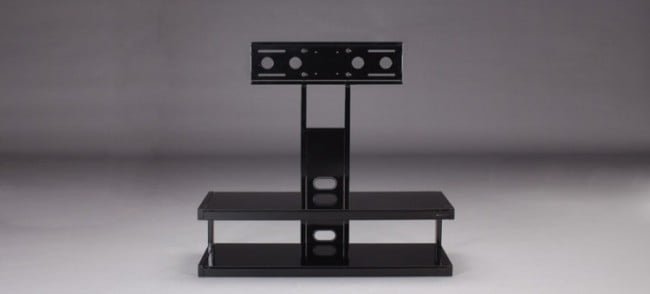

MOBILE PORTA TV NORSTONE S

DESIGN

Sé – powder coated black – lacquered black



DIMENSIONS

• Overall dimensions (W x H x D):
  43.3 x 45.5 x 17.2″ / 1100 x 1155 x 438 mm
• Shelf A (W x D): 41.3 x 15.7″ / 1050 x 400 mm
  Thickness: 0.2″ / 6 mm
  Maximum load: 88.2 lbs / 40 kg
• Shelf B (W x D): 40.9 x 15.7″ / 1040 x 400 mm
  Thickness: 0.2″ / 6 mm
  Maximum load: 44.1 lbs / 20 kg
• Height between shelves:
  7.9″ / 200 mm

TV MOUNT

• Screen from 32″ to 46″
• Compatibility: 600×400
•
• Horizontal holes distance min: 1.4″ / 35 mm
• Horizontal holes distance max: 26.3″ / 667 mm
• Vertical holes distance min: 2.4″ / 62 mm
• Vertical holes distance max: 18.3″ / 464 mm
• Adjustable height min: 33.7″ / 855 mm
• Adjustable height max: 35.8″ / 910 mm
• Maximum load: 132.3 lbs / 60 kg
