V90-LPS – Specifications

Performance

• Input impedance: 47kOhm (MM), 100Ohm (MC)
• Input sensitivity: 3.0mV (MM), 400μV (MC) – for 300mV out
• Total harmonic distortion: 0.01% (MM/MC) – @ 1kHz, 300mV out
• Frequency Response: +0, –0.1dB, 20Hz to 20 kHz
• Signal / Noise ratio (A weighted): >80dB (MM), >70dB (MC)
• Input overload margin: 15dB (MM), 22dB (MC)
• RIAA response: +/- 0.25dB

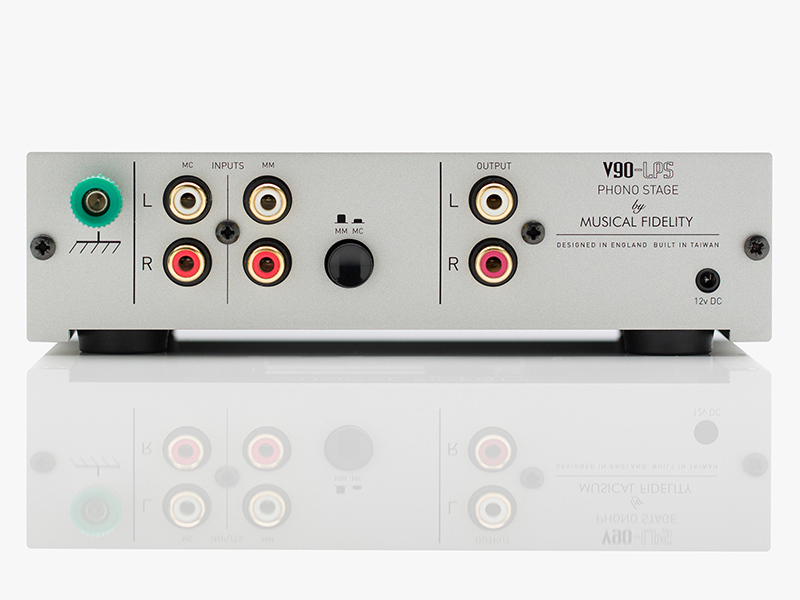

Inputs

• MM: 1 pair RCA sockets
• MC: 1 pair RCA sockets

Outputs

• 1 pair RCA sockets

General

• Dimensions – WxHxD (mm): 170 x 47 x 102
• Weight (unpacked / packed): 600g / 1.1 kg
• Supplied Accessories
• 1x 12v 500mA DC power supply
