Estensione e uscita dei bassi a Jaw-Dropping con controllo e precisione pinpoint

L’SVS PB-4000 combina potenza sismica e un’estensione a bassa frequenza che puoi sentire con raffinatezza e musicalità che sospende il tuo senso di incredulità. Con la tecnologia trickle down della serie 16-Ultra, nominata i migliori subwoofer al mondo da quasi tutte le pubblicazioni audio e gruppi industriali nel 2017, il PB-4000 schiaccia le aspettative e offre un livello di prestazioni del subwoofer senza rivali disponibile solo da SVS.

Driver SVS ad alta escursione – Uscita e controllo SVS leggendari

High-Excursion SVS Driver

Il driver subwoofer PB-4000 offre il pieno potenziale dell’immensa potenza dell’amplificatore Sledge STA-1200D con precisione e controllo per produrre SPL energizzanti per la stanza e un’estensione a bassa frequenza senza sforzo con precisione millimetrica a tutti i livelli di azionamento.

  • Dual ferrite magnet motor assembly weighing nearly 40lbs generates immense magnetic force and excursion of the 13.5-inch driver to produce massive low frequency output well below the limits of human hearing.
  • Edge wound voice coil with eight-layer aluminum flat wire minimizes distortion and power compression while providing excellent heat dissipation and linearity ensuring precise control.
  • Lightweight and rigid composite cone with premium glass fiber dustcap generate massive output with pinpoint accurate frequency response.
  • Proprietary injection molded gasket and long-throw parabolic surround ensure longevity and allow extreme excursion and SPLs.

Amplificatore Sledge – Uscita massiccia, DSP sofisticato, gestione avanzata dell’alimentazione

Sledge Amplifier

Valutato in modo conservativo a 1.200 watt RMS e oltre 4.000 watt di potenza di picco, l’amplificatore PB-4000 Sledge STA-1200D utilizza un efficiente design di classe D combinato con un’uscita MOSFET completamente discreta e un sofisticato motore DSP Analog Devices. Il risultato è un livello di potenza senza sforzo e di elaborazione avanzata non disponibile da nessun altro produttore di subwoofer alimentati.

High Current Output of Fully Discrete MOSFETs with Efficiency of Class D Amplifier

Efficiency of a Class D amplifier with the ability to move massive amounts of current through the fully discrete MOSFETs enabling immense output and precise control for outstanding real-world subwoofer performance at all drive levels.

Sophisticated 50MHz High Resolution Analog Devices Audio DSP

Most advanced digital processor ever used in a subwoofer maintains pinpoint accuracy and pristine sound quality through advanced in-room tuning, optimized frequency response curves, powerful DSP controls and more.

Variable Port Tuning Modes

Three foam port plugs come standard with the PB-4000 and allow for variable tuning. Each response curve for the three port tuning modes; standard, extended and sealed, is fully configured to the respective mode to achieve balanced and accurate low frequency response with all tuning preferences.

Active Power Factor Correction (PFC) & Ground Loop Isolation

Serves as a line conditioner, surge suppressor and voltage regulator letting the amplifier deal with wide voltage fluctuations and ensuring the subwoofers operate flawlessly on any household circuit no matter how unstable the incoming current. An isolated circuit creates a vanishingly low noise floor by eliminating the potential for ground loop hums from outside components resulting in absolute sonic transparency.

App per smartphone PB-4000 – Il modo più semplice di sempre per gestire il DSP e il controllo del subwoofer

PB-4000 Smartphone App

L’innovativa app per smartphone funziona con i dispositivi Apple iOS® e Android® per liberare tutta la profondità, la forza e le sfumature del subwoofer PB-4000 controllando tutte le funzioni DSP tra cui: volume, EQ parametrico, filtro passa-basso, fase, polarità, guadagno della stanza, sintonizzazione della porta, preset personalizzati e impostazioni di sistema.

  • Connects via Bluetooth for convenient control even when subwoofer is out of sight.
  • 3-band parametric EQ controller allows precise adjustments for frequency slope and Q factor down to the single Hz level with four different slopes, so users can improve performance by eliminating peaks, nulls and other room issues.
  • Stores 3 custom presets for movies, music and other listening experiences such as sports or gaming.
  • 2-way feedback shows updates in real time on both the app and subwoofer interface

Design dell’armadio a scatola portato acusticamente inerte e rigidamente rinforzato

Display del pannello frontale intarsiato, tre porte frontali per bassi ad alto flusso, bordi arrotondati e una griglia metallica curva sull’armadio PB-4000 gli conferiscono un aspetto raffinato ma dominante che si fonde visivamente con l’home theater e i sistemi audio di fascia alta.

  • Double thick 2-inch MDF front baffle and rigid internal bracing to support the massive drive unit and to ensure an acoustically inert environment.
  • Highly reinforced internal design and acoustic insulation eliminates all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.
  • Protective, non-resonant steel mesh grille and custom elastomer feet for reducing noise artifacts within a room.
  • 2-way feedback shows updates in real time on both the app and subwoofer interface

SCHEDA TECNICA

Frequency Response / Acoustic Data:

* Frequency response graph does not denote maximum output capability
  • 16-200 Hz +/- 3 dB (standard mode)
  • 13-200 Hz +/- 3 dB (extended mode)
  • 18-200 Hz +/- 3 dB (sealed mode)
  • Roll-off slope specifically optimized to take maximum advantage of available room gain.
  • 2-meter ground plane away from reflective structures (quasi-anechoic).

Subwoofer Specs:

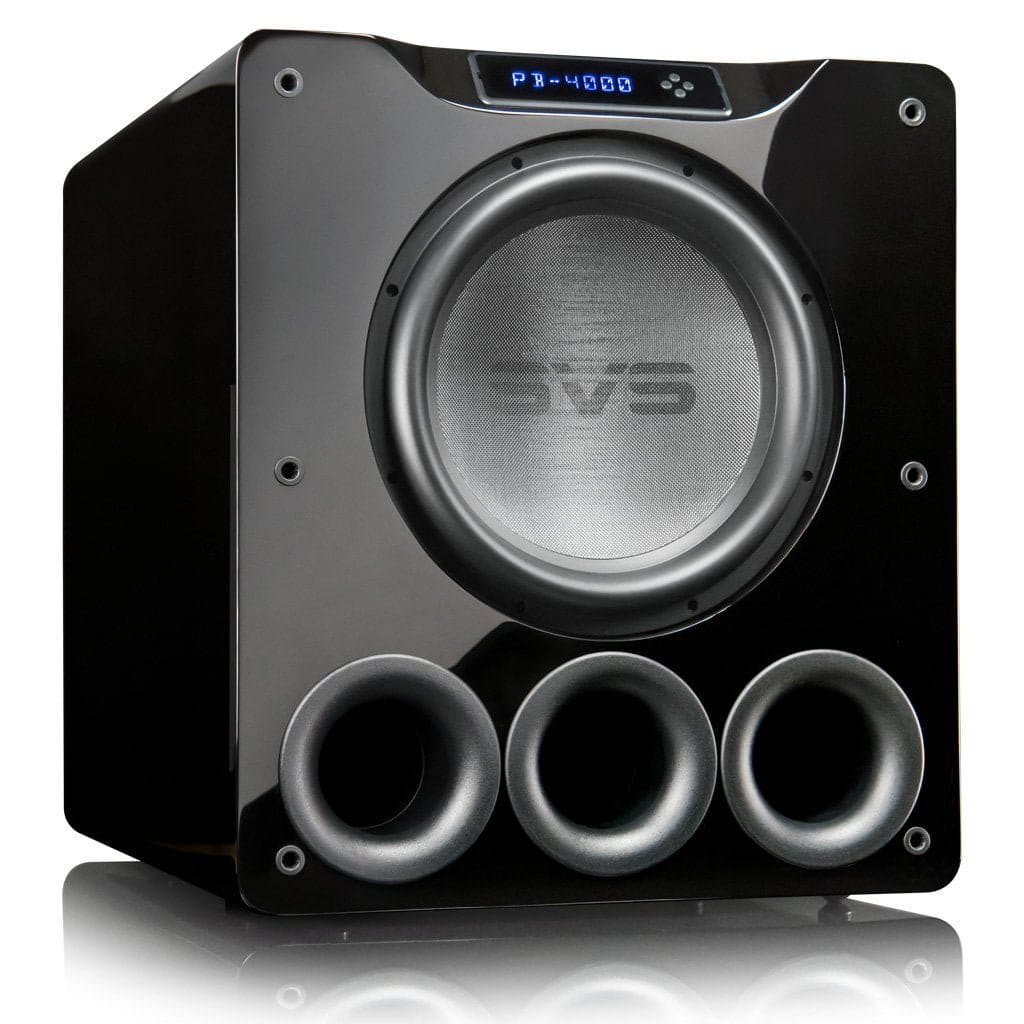

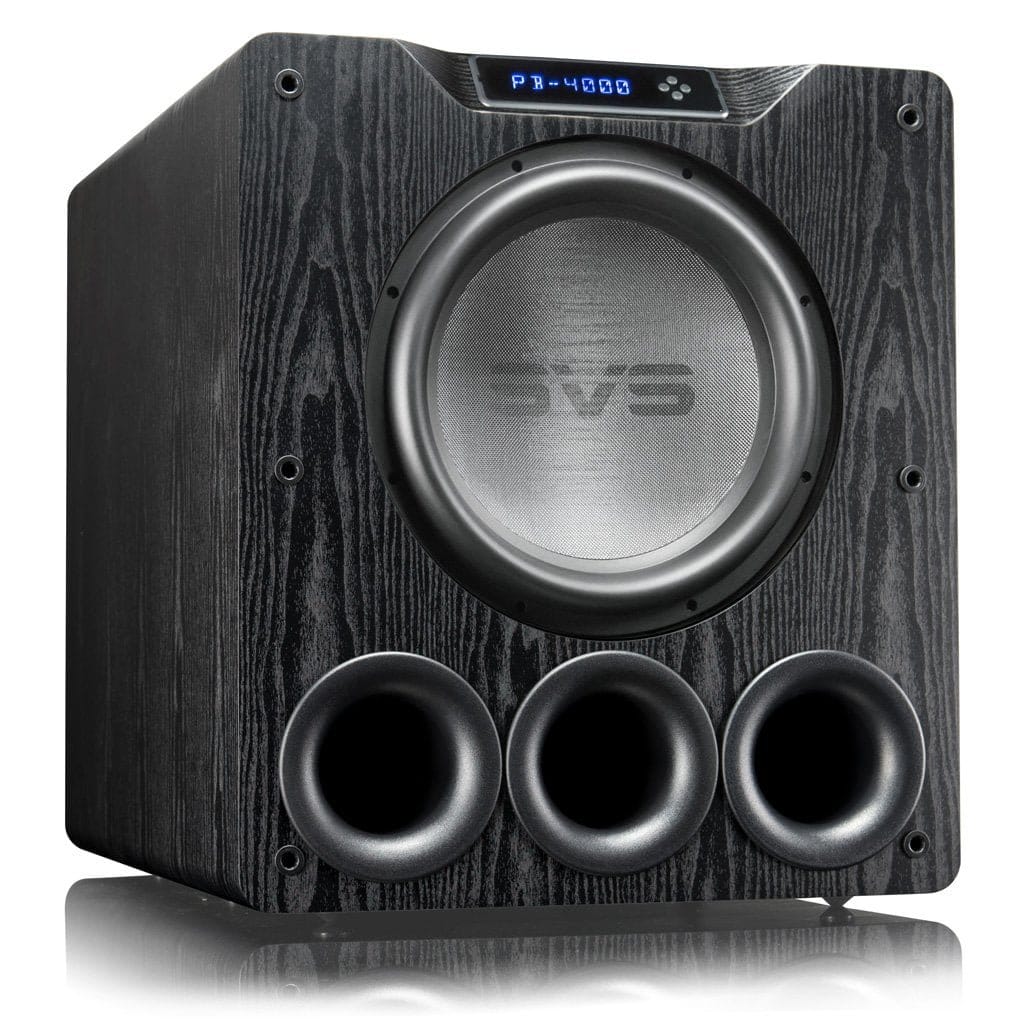

  • Premium Black Ash and Piano Gloss Black finish options
  • Protective non-resonant steel mesh grille
  • Front-firing 13.5″ driver
  • Rear-mounted amplifier
  • Screw-in rubber feet
  • Robust Medium Density Fiberboard (MDF) cabinet construction
  • Triple 3.5-inch ports
  • Cabinet Dimensions (without grille): 23.4” (595mm) H X 20.5” (520mm) W X 27.7” (704mm) D
  • Cabinet Dimensions (with grille): 23.4” (595mm) H X 20.5” (520mm) W X 30” (763mm) D
  • Shipped Dimensions: 29.1” (738mm) H X 26” (661mm) W X 36” (915mm) D
  • Weight (unboxed): 153.2 lbs. (69.5 kg)
  • Shipped Weight: 172.4lbs (78.2kg)

Driver Specs:

  • High performance SVS 4000 Series Subwoofer Driver – optimized for ported cabinet design.
  • Proprietary 13.5” Driver with finely tuned Underhung Motor Configuration
  • 49.6lb (22.5kg) pound Woofer with 44.3lb (20.1kg) pounds for the motor
  • Underhung 53mm Xmax, 91.6mm Xmech precision aligned excursion
  • 8-layer aluminum flat wire edge wound 3” voice coil for ultra-low distortion, efficient heat dissipation, exceptional linearity and nearly zero power compression.
  • Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible.
  • All-new High density FEA-optimized cast aluminum basket provides unequaled levels of rigidity, tensile strength, and energy transference available from a subwoofer.
  • Dual 24-strand copper and Nomex composite high-temperature leads woven through the suspension provide a pristine electrical connection from the amplifier to the voice coil.
  • Premium glass fiber laminated dustcap and reinforced and vented paper-composite cone sub-structure ensure a light, rigid, and neutral radiating surface.
  • Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full excursion for exceptionally tight and fast output, even at reference volumes.
  • Extreme oversized low carbon vented steel U-yoke and top plate provide superior cooling and improved magnetics for maximum performance and efficiency.
  • Copper ring shorting sleeve reduces gap induction and distortion, enhances thermal conductivity
  • Nickel-plated high-tension spring terminals
  • Proprietary injection molded gasket and parabolic SBR extreme-excursion surround maintains ideal pistonic motion for pinpoint accuracy and control
  • Low carbon 1008 steel components with black electrophoresis plating

Amplifier Specs:

  • Massively powerful Sledge 1,200-watt continuous Class D design with 4,000+ watts of Peak Power.
  • Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation with three parametric EQs and port tuning (Ported models only) for absolute best alignment with speakers and optimized performance in any room.
  • Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow custom tuning for every room and system.
  • High efficiency cool-running Class D switching topology with massive 32 Amp 600 Volt MOSFET’s result in lower EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output with pristine clarity well beyond reference listening levels.
  • High resolution 50MHz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer processor available for perfect audio reproduction.
  • 100v-240v full range input active Power Factor Correction (PFC) pre-regulates mains to solid 360V DC regardless of mains voltage or quality so the sound quality never falters no matter what’s coming out of the wall
  • Active PFC lowers average current and smooths mains input current allowing for 1200W output from a standard 15A mains circuit.
  • XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.
  • Convenient front-mounted display featuring new Intelligent Feature Control (IFC) with bright blue dimmable/defeatable 8-digit LED front display.
  • Custom EQ and DSP limiter settings tuned specifically for the PB-4000 ported cabinet design.
  • Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.
  • Input impedance 22kohm (unbalanced RCA)/ 22kohm (balanced XLR).
  • Green 0.5-watt low standby power consumption
  • RoHS compliant, lead-free construction, world-wide safety certifications

SVS App Specs:

  • The most powerful and flexible Bluetooth controlled subwoofer DSP app, works with both iOS and Android operating systems.
  • Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.
  • Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
  • Single tap adjustment for controlling variable port tuning with standard, extended and sealed modes.
  • Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
  • Easy-to-follow tutorial provides clear guidance for all functions.

Included Accessories:

  • Protective non-resonant steel mesh grill
  • IR remote control
  • 3 Foam Port Tuning Plugs
  • Elastomer feet included
  • Extra heavy-duty, high current 6′ power cord
  • Quick Start Guide
