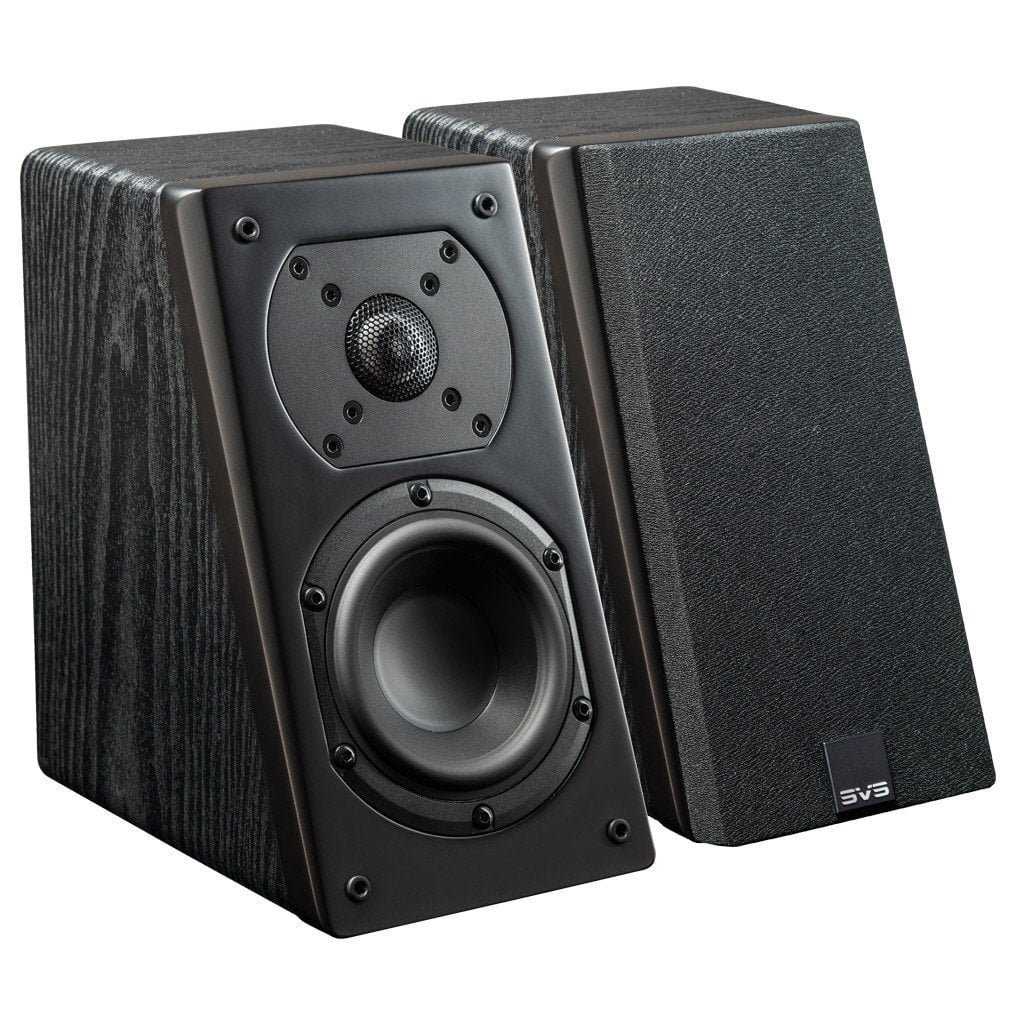

SVS Prime Elevation | COPPIA DIFFUSORI DOLBY ATMOS

• Rated bandwidth: 55 Hz-25 kHz (±3 dB)
• Nominal impedance: 8 ohms.

• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
• Recommended amplifier power: 20-150 watts.

• Black Ash, Piano Gloss Black and Piano Gloss White finish options
• Single set of 5-way binding posts
• 1” wide-flared rear-firing port
• Cloth grille with pin/cup retention system
• Magnetic SVS Logo which can be removed and oriented according to speaker application.
• Elastomer stick-on bumper feet (adds 3mm to height)

• Unique SVS Multi-Angle Wall Bracket (patent pending) system that allows speaker to be wall mounted in any of four positions
• 1/4″ brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems.
• Cabinet Dimensions: 9.25″ (H) X 5.44″ (W) X 7.88″ (D)
• Overall Dimensions: 9.4″ (H) X 5.44″ (W) X 8.33″ (D) (includes grille, binding posts and bumper feet)
• Overall Dimensions: 9.25″ (H) X 5.44″ (W) X 8.98″ (D) (includes grille and SVS Multi-Angle Wall Bracket)
• Shipped Dimensions: 9.30″ (H) X 12″ (W) X 18″ (D)
• Weight Unboxed: 7.8 pounds
• Shipped Weight: 20 pounds

1” Aluminum Dome Tweeter:

• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome for exceptional transient response

4.5” Midrange Driver:

• Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
• Vented voice coil former minimizes air compression artifacts

Crossover:

• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
• Crossover network delivers outstanding phase coherency and time domain behavior
• Tweeter-to-woofer crossover: 2.5 kHz (12 dB/octave slopes)

Cabinet:

• Acoustically transparent and FEA optimized grilles minimize diffraction
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved off-axis high frequency response
• FEA-optimized cabinet and extra thick MDF bracing eliminate resonances
• Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
