PREAMPLIFICATORE DIGITALE / CONVERTITORE D/A – GRAZIE ALLE SUE CARATTERISTICHE IL MCINTOSH D-100 PUO` ESERE UTILIZZATO COME CONVERTITORE D/A ALL' INTERNO DI UN SISTEMA GIA` ESISTENTE O ASSOLVERE LE FUNZIONI DI PREAMPLIFICATORE ALL' INTERNO DI UN SISTEMA CON FONTI UNICAMENTE DIGITALI, INFATTI, GRAZIE ALL' AMPIA SCELTA DI INGRESSI, L' USCITA ANALOGICA VARIABILE CAPACE DI PILOTARE DIRETTAMENTE UN FINALE E IL TELECOMANDO, E` IN GRADO DI GESTIRE UN IMPIANTO ANCHE MOLTO COMPLESSO – CONVERTITORE A 8 CANALI 32 BIT/192 KHZ IN CONFIGURAZIONE STEREO QUAD BALANCED – 2 INGRESSI S/PDIF, 2 OTTICI, 1 USB – USCITA FISSA E VARIABILE (FINO A 16 V) SIA BILANCIATA CHE SBILANCIATA – POWER CONTROL – USCITA CUFFIA – DIMENSIONI 445 X 98 X 406 MM (LXAXP) – PESO 6,1 KG

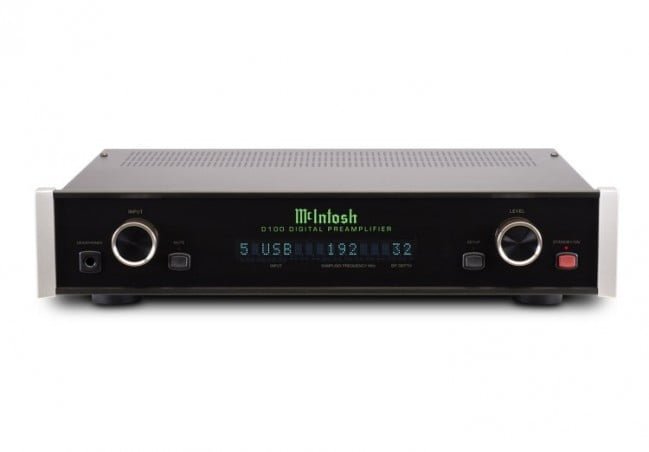

The D100 is a remote controlled digital stereo preamplifier with five digital inputs (2 Coaxial, 2 Optical and 1 USB), and both variable and fixed volume audio output. It is a simple solution to add digital music to an existing McIntosh system. Or simply add an amplifier, a pair of speakers and a digital source for a complete digital based stereo system. It's also flexible enough to be used a headphone amplifier; just connect your digital sources and a pair of headphones for a personal listening experience.


It shares the classic façade, knobs and handcrafted black-glass front panels as all other McIntosh components in a small form factor of just under 4" in height. Its powerful built in headphone amplifier will elevate the sound of your favorite headphones so that you may enjoy the ultimate personal listening experience. (Headphones not included.)

The D100 utilizes an 8 channel, 32-bit, 192kHz D/A converter with wide dynamic range and extremely low distortion. Eight channel D/A converter is used in stereo Quad Balanced mode. Music at all levels is reproduced with extreme precision and elegance. A 1/8” mini jack is provided for control data from the data output jack of a McIntosh preamp or A/V Control Center.





ELECTRONIC SPECIFICATIONS



ULTRA LOW DISTORTION

0.002%

FREQUENCY RESPONSE, +0, -3DB

4Hz to 68,000Hz

MAXIMUM VOLTS OUT (BALANCED / UNBALANCED)

16/8 V RMS

INPUT IMPEDANCE (BALANCED / UNBALANCED)

44K ohm, 22K ohm

PHONO VOLTAGE GAIN

N/A

HIGH LEVEL VOLTAGE GAIN

N/A

SIGNAL TO NOISE RATIO

110dB

DUAL MONO POWER SUPPLY

No

DUAL MONO, FULLY BALANCED

Digital, Fully Balanced



CONNECTIVITY



HEADPHONE OUTPUT

Yes 1/4", High Drive

INPUTS UNBALANCED

No

INPUTS BALANCED

No

VARIABLE OUTPUTS UNBALANCED

1 Stereo

VARIABLE OUTPUTS BALANCED

1 Stereo

DIGITAL USB INPUT

1 (2.0, 32/192 Asynchronous)

DIGITAL COAXIAL INPUT

2

DIGITAL OPTICAL INPUT

2

PHONO MOVING MAGNET

No

PHONO MOVING COIL

No

RECORD PROCESSOR LOOP

No

INPUT LEVEL MATCH

No

HOME THEATER PASS THROUGH

No



CONTROL



TONE CONTROLS

No

TONE BYPASS AND INPUT ASSIGN

No

RS232 CONTROL INPUT

No

POWER CONTROL OUTPUT

Yes, 1

REAR PANEL DATA PORTS

Yes, 1 in

REAR PANEL IR SENSOR INPUT

Yes



GENERAL SPECIFICATIONS



MULTI-CHASSIS OR SINGLE

Single

OUTPUT METERS

No

TUBE OR SOLID STATE

Solid State

ON, POWER CONSUMPTION

20 watts



WEIGHTS & DIMENSIONS



DIMENSIONS (W X H X D)

17.5" (44.45cm) x 3-7/8" (9.8cm) x 16" (40.64cm)

WEIGHT

13.5 lbs (6.1kg)

SHIPPING WEIGHT

28 lbs (12.7kg)



Peso 1,0000 kg
[trustindex no-registration=google]
Convertitore Preamplificatore D/A Mcintosh D 100
3.450,00
